On-Air Clock

Overview

The on-air-clock module provides a broadcast-friendly analogue + digital clock page for use in HTML renderers such as OBS or CasparCG.

It includes:

  • A custom SVG analogue clock face with 12-hour outer labels and 24-hour inner labels.
  • A digital time display.
  • Optional date and logo display.
  • Runtime styling controls (header text, colors, text weight).
  • Configurable timezone using IANA timezone identifiers.

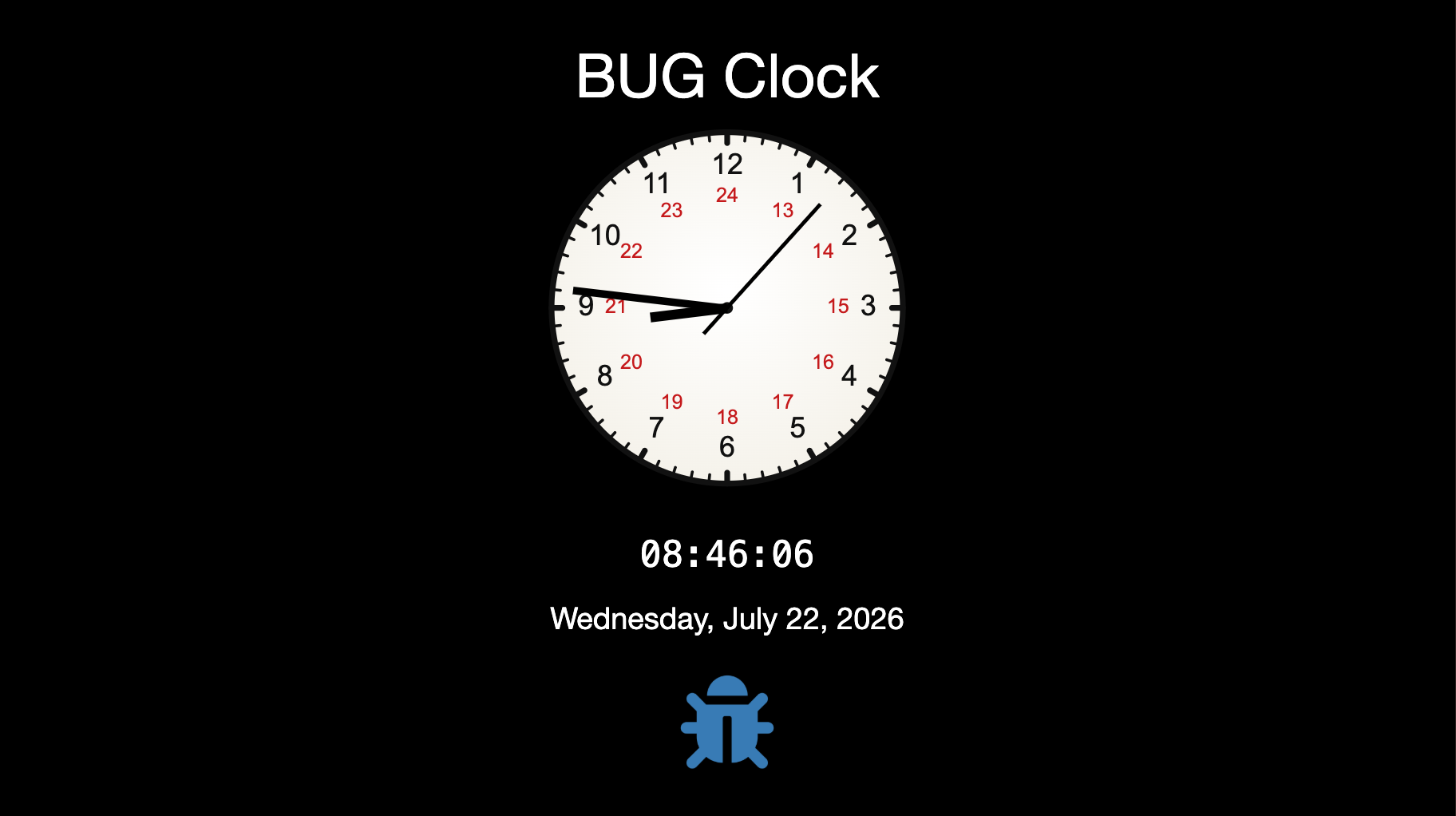

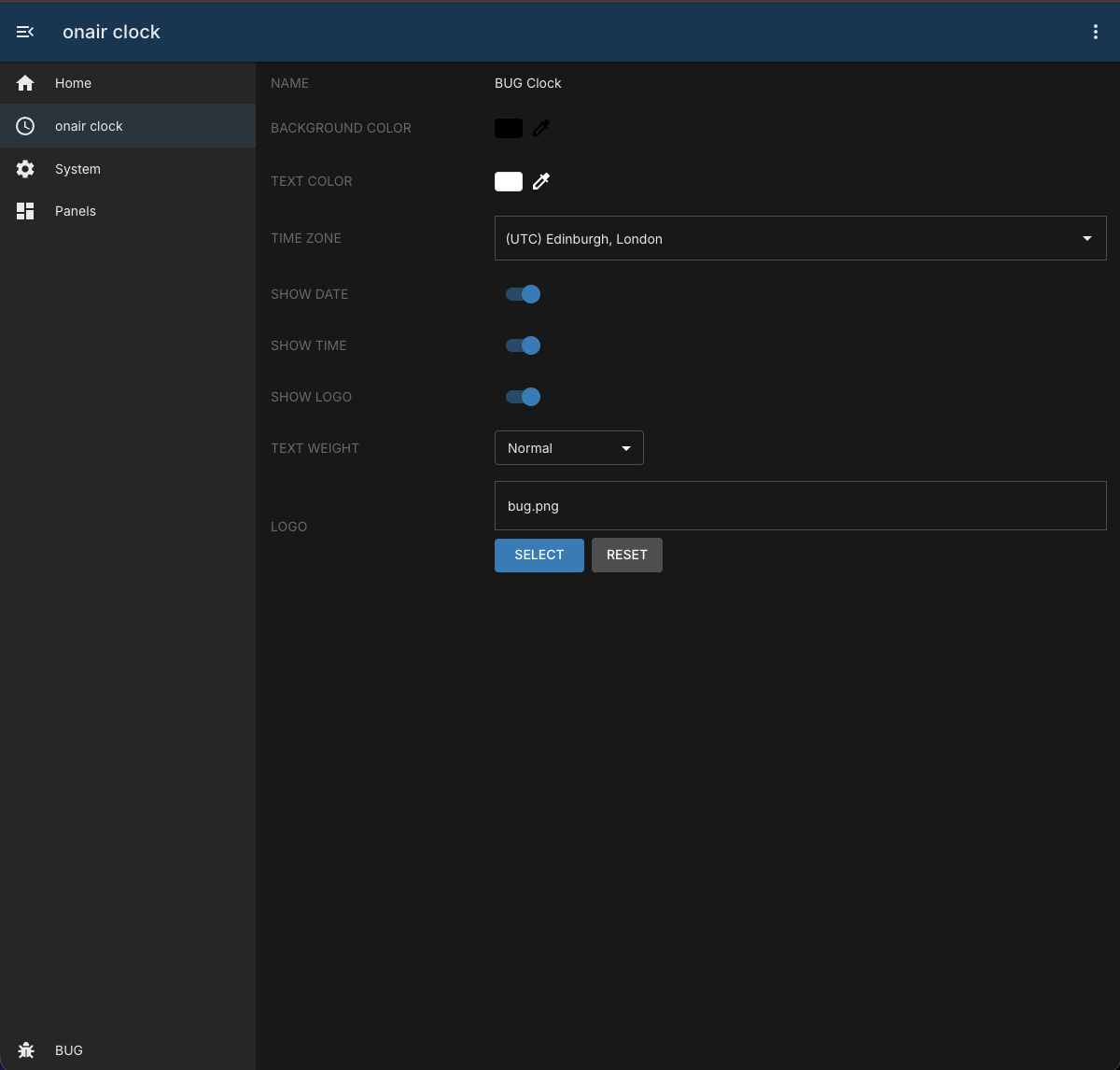

Configuration Clock screenshot

How to use

Use the public clock page route for playout:

  • /clock/large This is also available via the panel menu:

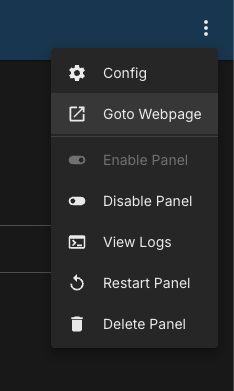

Accessing the Clock

This page is intended to be consumed by the renderer (for example as a browser source in OBS).

Configuration

Instance-level configuration fields:

Field Default Description
id "" Unique instance id.
order 0 Display order of this instance.
needsConfigured false Indicates whether first-time setup is required.
title "" Human-readable panel title.
module "onair-clock" Internal module name.
description "A Clock that can be used in an HTML5 Graphics Renderer" Instance description.
notes "" Optional free-text notes.
enabled false Enables/disables this instance.
header "BUG Clock" Text shown above the clock.
backgroundColor "#000000" Page background color.
textColor "#ffffff" Header/date/time text color.
fontWeight "400" Weight used for header/date/time text.
showTime true Show or hide the digital time.
showDate true Show or hide the date text.
showLogo true Show or hide the logo image.
timezone See module.json Timezone object used to render both analogue and digital time.
logo See module.json Logo payload (name and base64 image).

Notes:

  • Time rendering uses the configured timezone (timezone.utc[0]) and not the host browser local time.

API routes

Container API routes:

Method Route Description
GET /api/config Return current module configuration.
PUT /api/config Update module configuration.
GET /api/status Return module status payload.
ALL /api/clock/large Return the clock HTML page.

Changelog

version 1.0.3

  • 2026-07-22: add readme (977f39d)
  • 2026-07-22: ui improvements (51cf2d6)
  • 2026-07-22: add tests (2c4b869)
  • 2026-07-22: change font (00e90a2)
  • 2026-07-22: use asyncHandler in routes (c2dd04e)
  • 2026-07-22: replace console log with logger error handling [copilot] (973a2d8)
  • 2026-07-22: fix incorrect animation (18ce739)
