Cisco SG
Overview
A module to monitor and control Cisco SG-series switches.

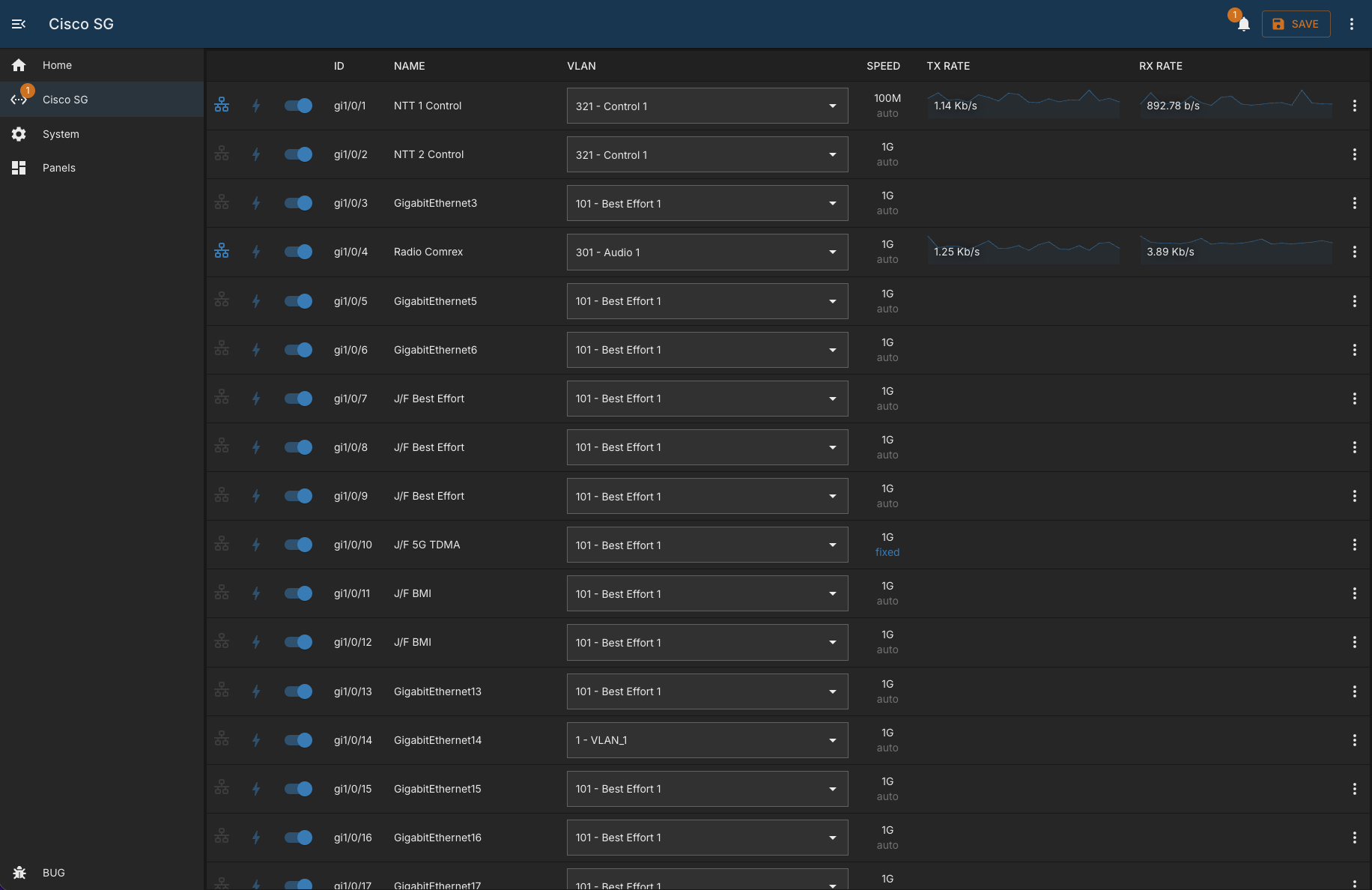

Interface list features:
- list of interfaces with bitrate and recent historical stats
- ability to enable and disable ports
- view and update interface descriptions
- select VLAN mode (access or trunk) and update VLAN membership
- display of negotiated and configured interface speeds
- ability to protect interfaces from accidental changes
- display of neighbors and known devices (LLDP and FDB)
- optional DHCP source panels to enrich discovered MAC addresses with IP details
Interface page features:
- detailed per-interface view
- statistics graph for recent traffic history
- neighbor details (LLDP)
- devices tab (FDB) with optional IP lookup
Status checks include:
- heartbeat (module connectivity)
- stale interface, VLAN, and system data detection
- pending configuration detection
- password-expired detection
Configuration
| Field | Default Value | Description |
|---|---|---|
id | "" | Unique identifier for this module instance (usually auto-generated). |
order | 0 | Display order for this module instance. |
needsConfigured | true | Indicates whether the module has been configured since build. |
title | "" | Human-readable title shown in the UI. |
module | "cisco-sg" | Internal name of the module. |
description | "" | Optional text describing this module instance. |
notes | "" | Free-text field for extra operational notes. |
enabled | false | Whether this module instance is active. |
address | "" | IP address or hostname of the switch. |
username | "bug" | SSH username used for CLI-based actions and checks. |
password | "" | SSH password for the configured user. |
snmpCommunity | public | SNMP community string with write access. |
protectedInterfaces | [] | List of interface IDs protected from accidental changes. |
dhcpSources | [] | List of panel IDs that expose the dhcp-server capability. |
Capabilities
This module follows BUG’s standard capabilities model. For more information, see BUG Capabilities Documentation.
| Type | List |
|---|---|
| Exposes | None |
| Consumes | dhcp-server |
Device Configuration
- Create a username and password with write access for SSH actions.
- Create an SNMP community with write access for monitoring and control.
Changelog
version 1.1.4
- 2026-07-21: add README and screenshot assets (88ff34a)
- 2026-07-21: add heartbeat check (a8f9597)
- 2026-07-21: fix db updating race conditions when updating labels (8231b0e)
version 1.1.3
- 2026-06-24: fix toobig on interfaces worker (165ea06)
version 1.1.2
- 2026-06-24: add poe support (cffd00b)
- 2026-06-24: migrated routes and added tests (cc3e575)
- 2026-06-24: add service tests (f03cc26)
- 2026-06-24: update services (dbd4723)
- 2026-06-24: use snmp batching/chunking in workers (cd6e35e)
- 2026-06-24: refactor to new task/worker structure (e48b3d2)
version 1.1.1
- 2026-06-06: fix stale lldp (c74f030)
