Cisco C1300

Overview

A module to control and monitor Cisco C1300-series switches.

Interface list features:

list of interfaces with bitrate (and recent historical stats)
ability to enable/disable ports
view POE status and control power
add description to interface (click on the name to edit)
select VLAN, including editing of trunk or access mode
display of interface rate (1G/100M)
ablity to ‘protect’ ports to prevent accidental changes (useful for uplinks etc) - stored locally in BUG
display of neighbors and/or known devices (LLDP or FDB)
configurable DHCP address source to convert discovered MAC addresses to IP

INFO: The main interfaces list also supports stacked switches, though this configuration is not recommended.

Interface page features:

Also polls the switch to check if there are pending changes and prompts to save if there are.

Also checks the device to see if the password has expired - this is a common cause of problems.

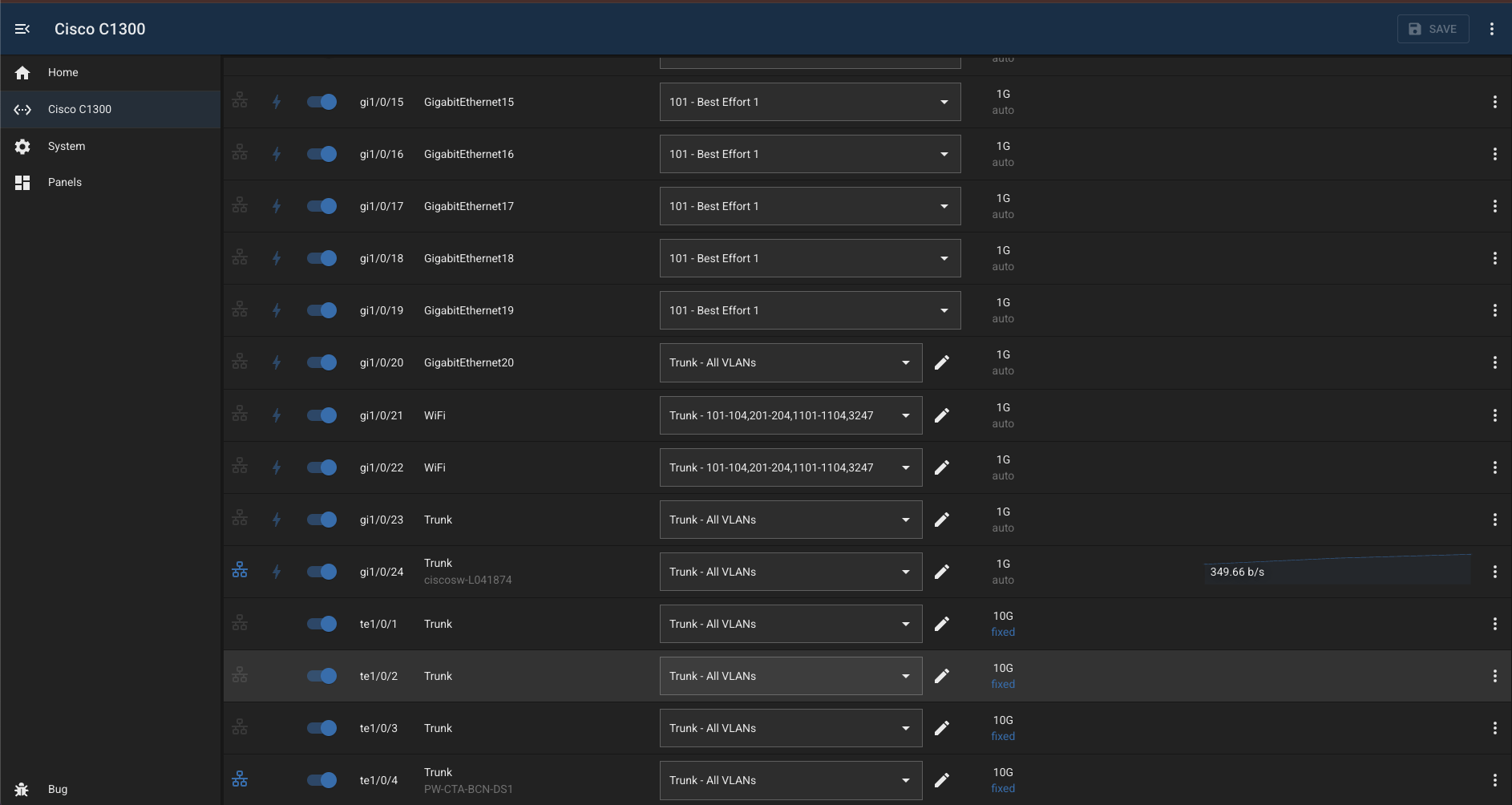

Screenshot

Field	Default Value	Description
`id`	`""`	Unique identifier for this module instance (usually auto-generated).
`needsConfigured`	`true`	Indicates whether the module has been configured since build.
`title`	`""`	Human-readable title for this module instance, shown in the UI.
`module`	`"cisco-c1300"`	Internal name of the module.
`description`	`""`	Optional text describing the module instance in the UI.
`notes`	`""`	Free-text field for extra notes about this configuration.
`enabled`	`false`	Whether the module instance is enabled
`address`	`""`	IP address or hostname of the device to connect to.
`username`	`"bug"`	Username used to authenticate with the device
`password`	`""`	Password for the user
`enabled`	`false`	Flag indicating whether this module instance is active.
`snmpCommunity`	`public`	SNMP community with write access to the device
`protectedInterfaces`	`[]`	An of array of interfaces which are ‘protected’
`dhcpSources`	`[]`	An of array panel IDs which provide the dhcp server capability

This module follows BUG’s standard capabilities model. For more information, see BUG Capabilities Documentation.

Type	List
Exposes	None
Consumes	dhcp-server

Create a username/password with write access - used to ssh into the device for the pending status
Create an SNMP community with write access - used for all other actions
