Blackmagic Videohub
Overview
This module provides control of Blackmagic videohub routers.
Features:
- uses the stored labels from the device

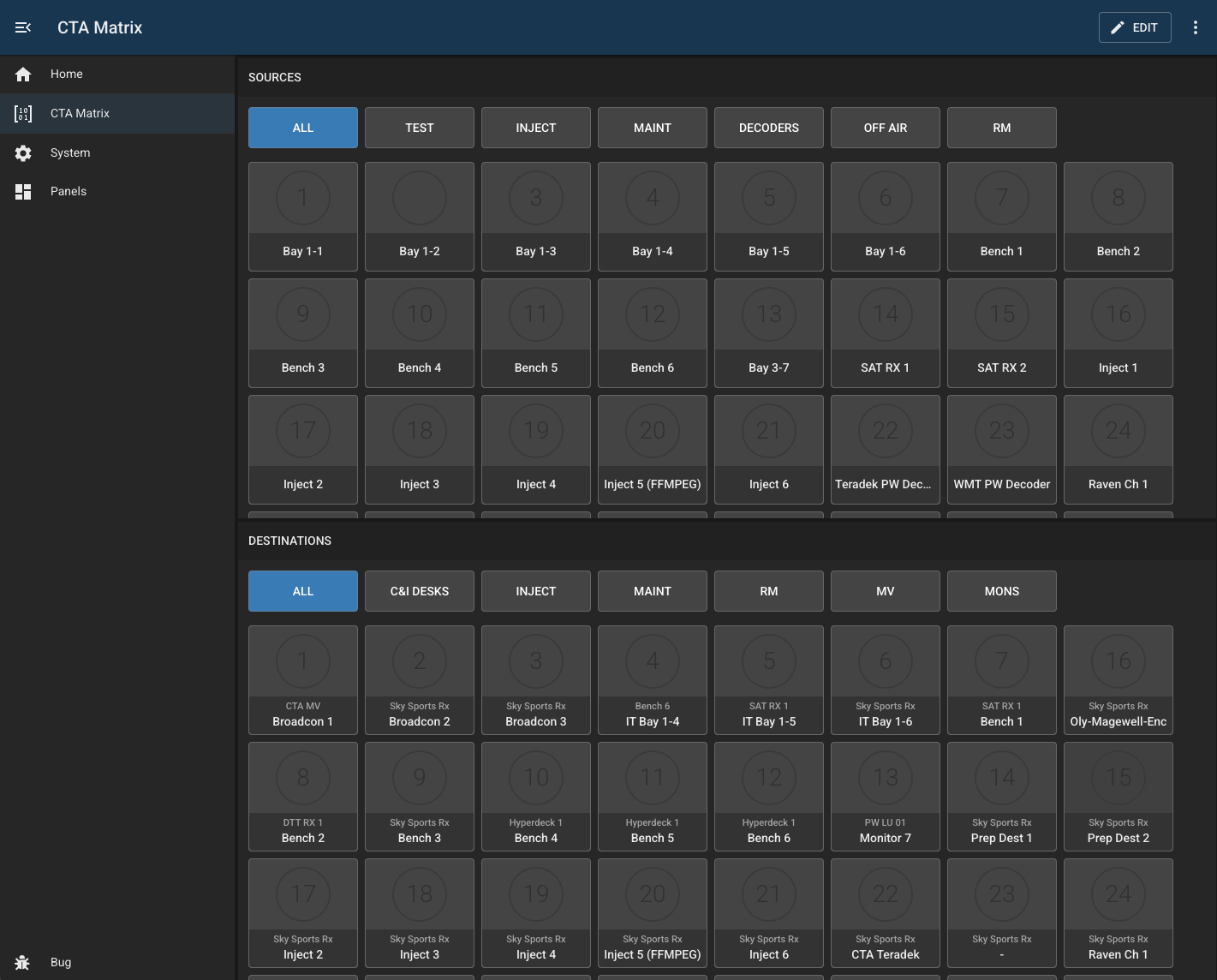

- provides custom groups (stored in BUG)
- add/remove groups

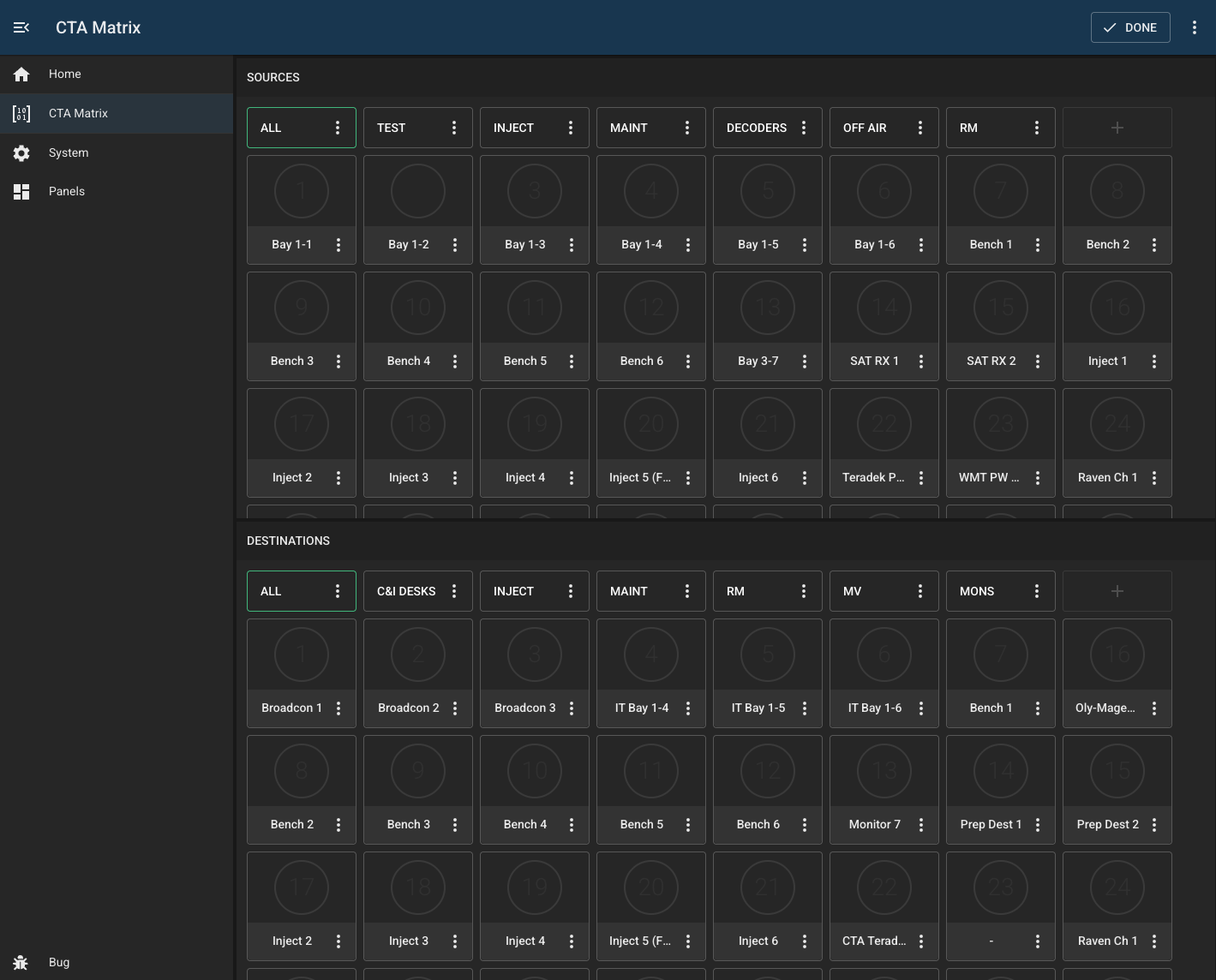

- reorder groups (drag/drop)
- reorder buttons in groups

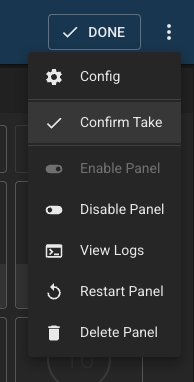

- an optional ‘use take’ setting which requires two clicks to take a route
- customisable colours and icons for all buttons
- uses the device destination ‘lock’ feature
UHD Quad-3G
An extra option has been added when the device is being used in UHD Quad-3D mode. Enabling ‘quad’ on a destination or source routes all 4 members of that group at the same time. Note that this can only be enabled for buttons 1,5,9 etc. To make things simpler, you can create a group with only the first buttons of each group visible.

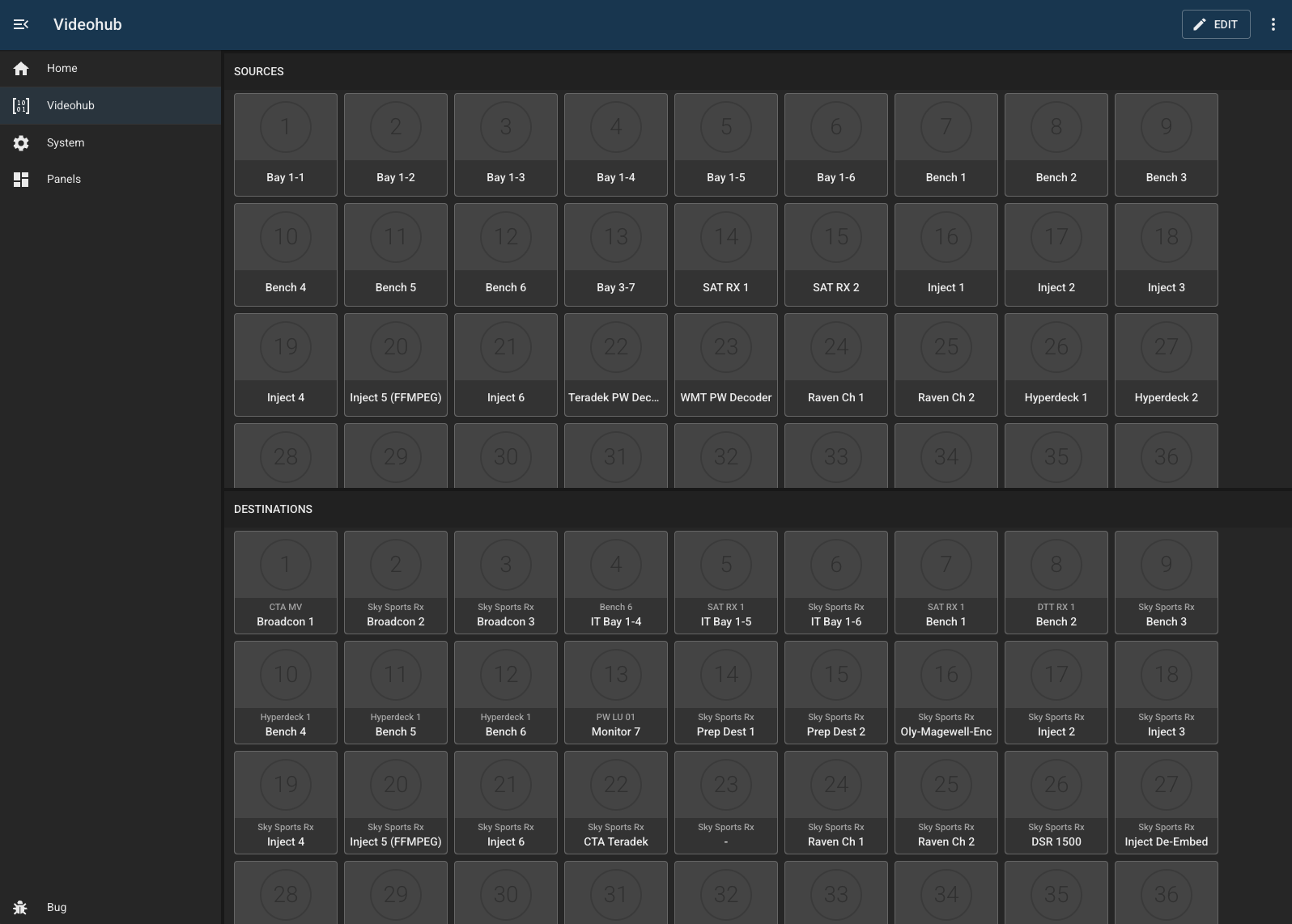

Screenshots
Configuration
| Field | Default Value | Description |
|---|---|---|
id | "" | Unique identifier for this module instance (usually auto-generated). |
needsConfigured | true | Indicates whether the module has been configured since build. |
title | "" | Human-readable title for this module instance, shown in the UI. |
module | "bmd-videohub" | Internal name of the module. |
description | "" | Optional text describing the module instance in the UI. |
notes | "" | Free-text field for extra notes about this configuration. |
enabled | false | Whether the module instance is enabled |
address | "" | IP address or hostname of the device |
port | 9990 | Port used to communicate with the device |
useTake | false | Whether to require an extra ‘take’ action when making routes |
sourceGroups | [] | An array storing the configuration of the source groups |
destinationGroups | [] | An array storing the configuration of the destination groups |
sourceIconColors | [] | An array storing the configuration of the source icon colors |
destinationIconColors | [] | An array storing the configuration of the destination icon colors |
sourceIcons | [] | An array storing the configuration of the source icons |
destinationIcons | [] | An array storing the configuration of the source icons |
excludeSources | [] | An array containing all source indexes to exclude from the UI |
excludeDestinations | [] | An array containing all destination indexes to exclude from the UI |
Capabilities
This module follows BUG’s standard capabilities model. For more information, see BUG Capabilities Documentation.
| Type | List |
|---|---|
| Exposes | video-router |
| Consumes | None |
Device Configuration
None required. Blackmagic devices don’t use usernames or passwords! We recommend NATing or ACLing this device to other users.
Troubleshooting
Changelog
version 1.3.6
- 2026-02-04: refactor service code to use new error handling (6c8eecd)
- 2026-02-04: improve api JSON error handling (9a97c7a)
version 1.3.5
- 2026-01-28: fix bug in getdestinations (2bd4d11)
version 1.3.4
- 2026-01-28: add default status check (1687880)
version 1.3.3
- 2026-01-28: add documentation (fab7b15)
### version 1.2.0
- 2025-09-26: fix page refresh
version 1.1.0
- 2024-06-10: add quad button routing
version 1.0.1
- 2023-08-09: add new Module logger
