Blackmagic MultiView 16
Overview
This module allows configuration of a Blackmagic multiview 16.
Handy features:
- easy routing of inputs to specific PIPs

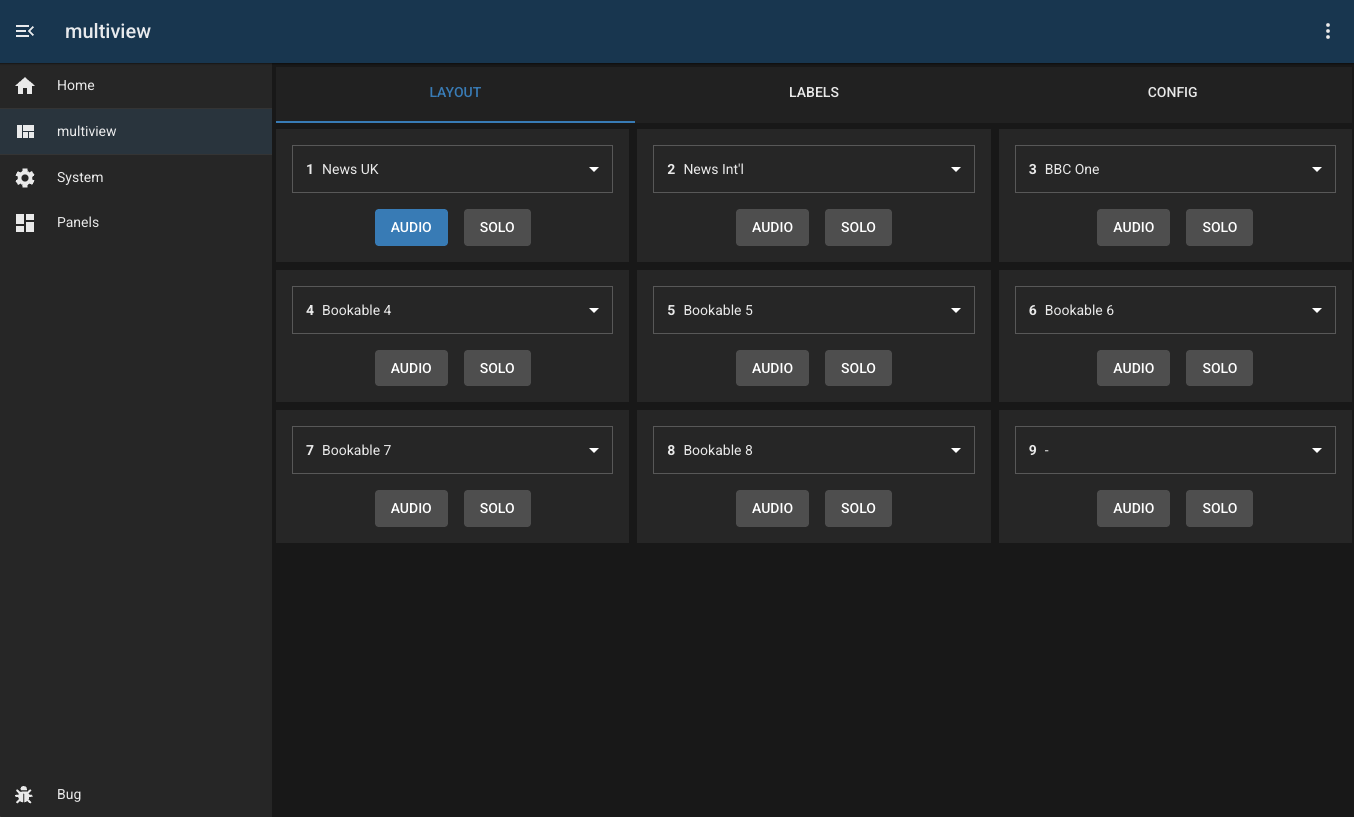

- ability to switch between UK-style and US-style layouts (1,2,3, or 1,4,9)

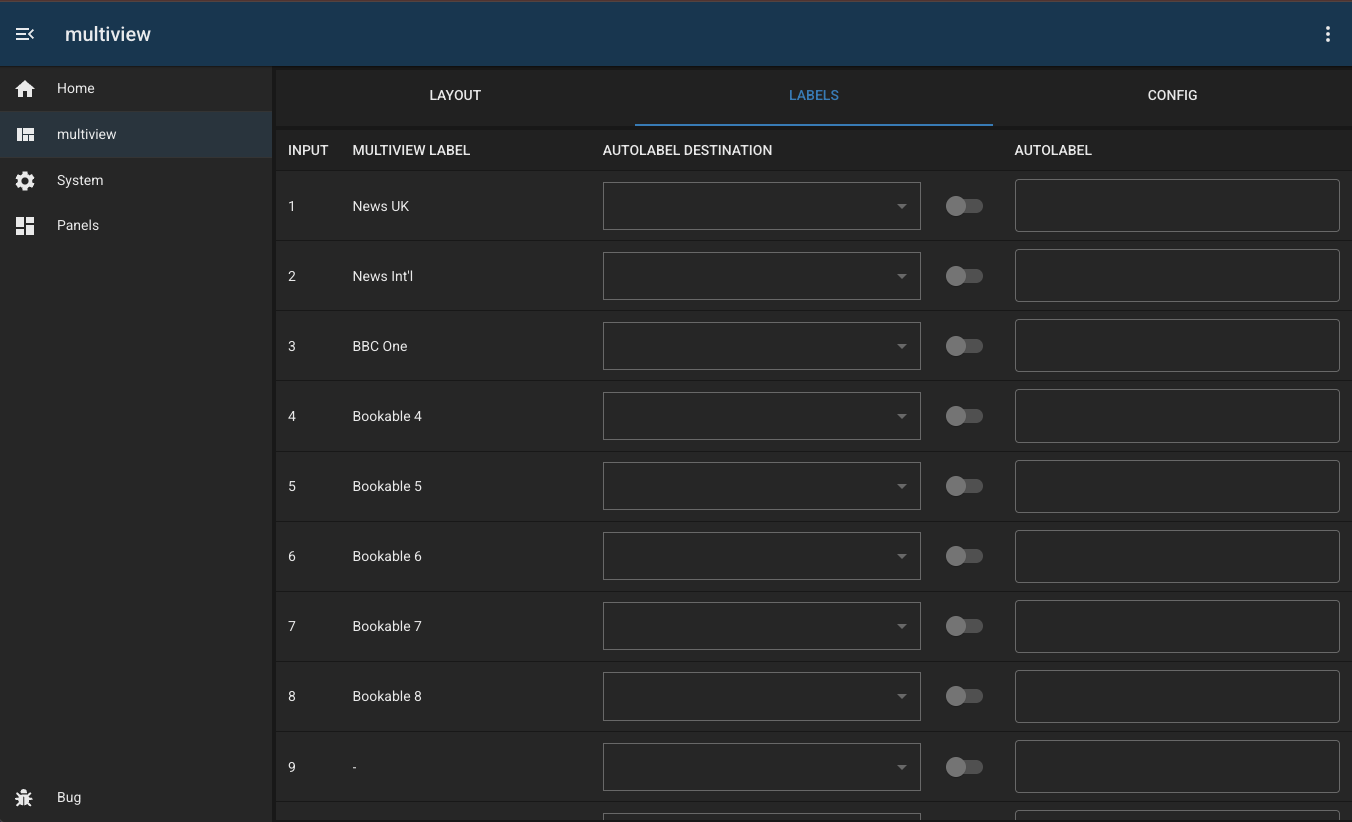

- integration with video routers (allowing automatic label updates)

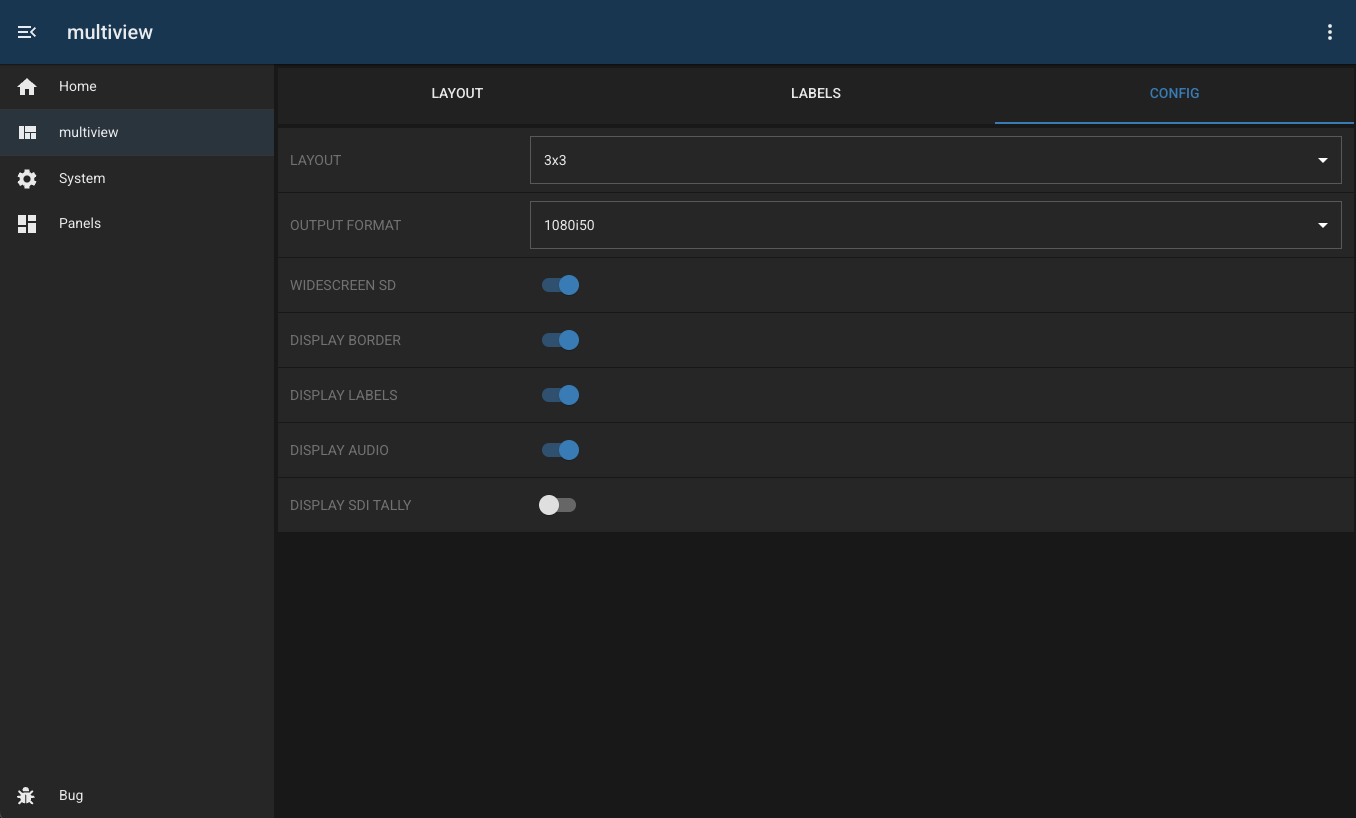

Configuration
| Field | Default Value | Description |
|---|---|---|
id | "" | Unique identifier for this module instance (usually auto-generated). |
needsConfigured | true | Indicates whether the module has been configured since build. |
title | "" | Human-readable title for this module instance, shown in the UI. |
module | "mikrotik-sdwan" | Internal name of the module. |
description | "" | Optional text describing the module instance in the UI. |
notes | "" | Free-text field for extra notes about this configuration. |
address | "" | IP address or hostname of the device to connect to. |
port | 9990 | Port used to connect to the device |
autoLabelSource | null | ID of a panel providing a video router capability |
autoLabelEnabled | [] | An array which stores which PIPs have their ‘auto label ‘ function enabled |
autoLabelIndex | {} | An object containing the mapping of PIP to router destination for auto labels |
enabled | false | Flag indicating whether this module instance is active. |
Capabilities
This module follows BUG’s standard capabilities model. For more information, see BUG Capabilities Documentation.
| Type | List |
|---|---|
| Exposes | |
| Consumes | video-router |
Device Configuration
None required. Blackmagic devices don’t use usernames or passwords! We recommend NATing or ACLing this device to other users.
Troubleshooting
Changelog
version 1.0.4
- 2026-02-04: add api JSON error handler (c200e1b)
- 2026-02-04: add default status response (595cda9)
- 2026-02-04: update code with new patterns (2f55290)
version 1.0.3
- 2026-01-27: add checkconfig to status checks (d07d068)
version 1.0.2
- 2026-01-27: added docs and UI tweaks (c18537d)
