Audio Player
Overview

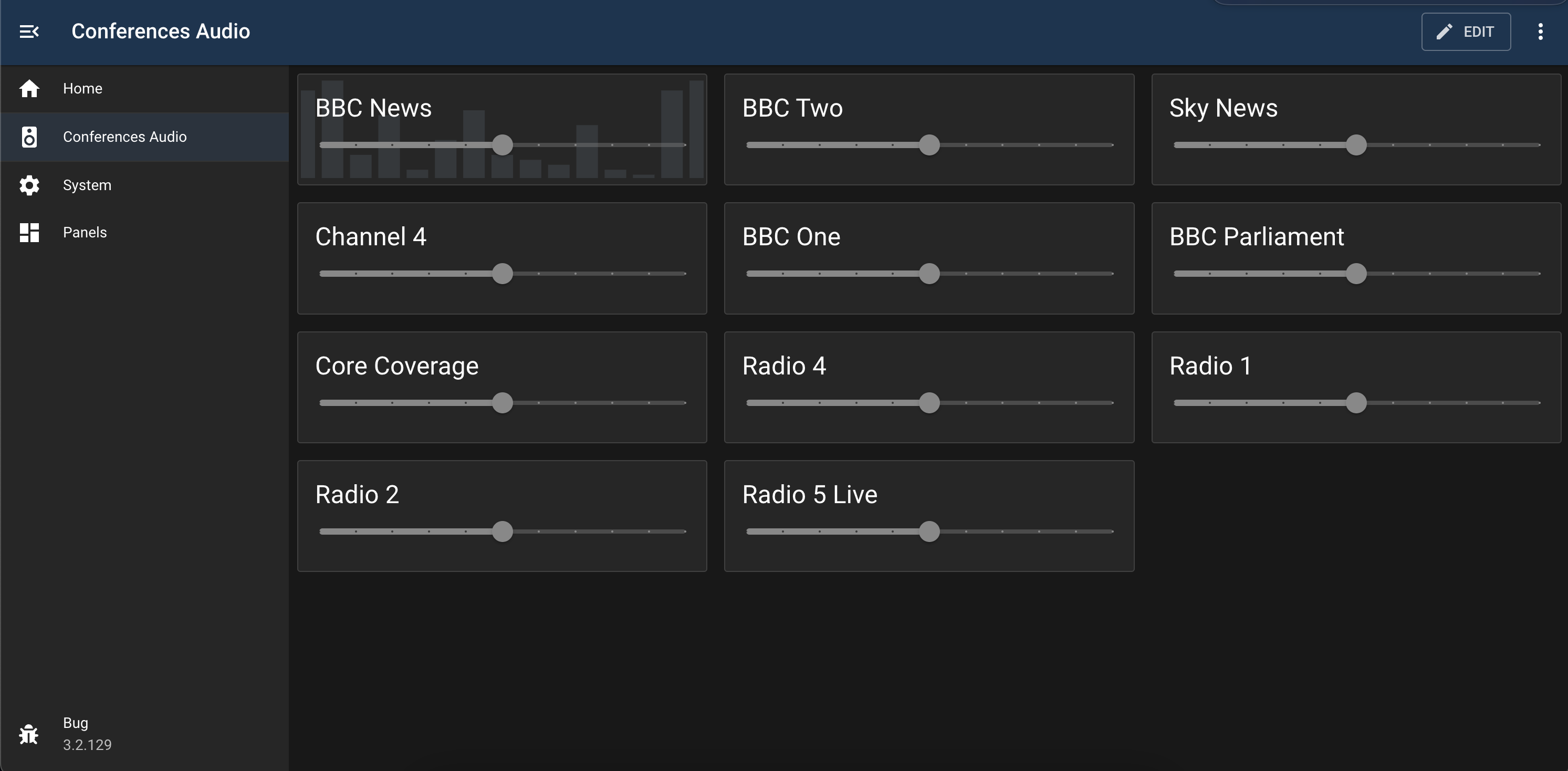

Provides multiple web-based audio players on a single panel, each rendered as a card with its own play/pause control, volume slider and live level animation. It is designed for monitoring several live audio streams (for example radio and TV channel feeds) at a glance.
Playback is handled by react-player, so any transport/codec supported by the browser’s native <audio> element works, including HLS (.m3u8) live streams. Stream requests are proxied through the module container, avoiding cross-origin restrictions in the browser.
Features
- Multiple independent players on one panel.
- Per-player play/pause and volume control.
- Live buffering indicator — a card only shows as active once audio is actually playing, not while connecting or buffering.
- Automatic recovery to the idle state if a stream fails to load.
- Streams are only loaded on demand (nothing plays or buffers until you press play).
How it works
- Each player references a stream
source. When you press play, the module proxies the stream through/api/audio/:playerId/...and begins playback at the live edge. - Players are mounted only while playing, so no stream is loaded on page load and pausing fully tears the stream down.
- The card reflects the true playback state: a spinner while buffering, and the active (green) styling with an animated level display once audio is flowing.
Configuration
Instance-level configuration:
| Field | Default Value | Description |
|---|---|---|
id | "" | Unique identifier for this module instance (usually auto-generated). |
order | 0 | Display order of this module instance in the UI. |
needsConfigured | false | Indicates whether the module has been configured since build. |
title | "" | Human-readable title for this module instance, shown in the UI. |
module | "audio-player" | Internal name of the module. |
description | "" | Optional text describing the module instance in the UI. |
notes | "" | Free-text field for extra notes about this configuration. |
players | {} | A map of player configurations, keyed by an auto-generated ID. |
enabled | true | Flag indicating whether this module instance is active. |
Each entry in players describes a single audio player:
| Field | Required | Description |
|---|---|---|
title | Yes | Label shown on the player card. |
source | Yes | Stream URL to play (for example an HLS .m3u8 playlist). |
description | No | Optional secondary text shown beneath the title on the card. |
Players are managed through the module’s edit/config panels rather than by editing the config directly.
API
The container exposes the following routes (relative to the module container base path):
| Method | Route | Description |
|---|---|---|
GET | /api/players | List all configured players. |
GET | /api/players/:playerId | Get a single player’s configuration. |
POST | /api/players | Add a player (title and source are required). |
PUT | /api/players/:playerId | Update an existing player. |
DELETE | /api/players/:playerId | Remove a player. |
GET | /api/audio/:playerId/:file | Proxy the player’s stream (playlist and segments). |
GET | /api/status | Module status. |
GET | /api/config | Get the module instance configuration. |
Changelog
version 1.1.2
- 2026-07-21: refactor routes to use asyncHandler [copilot] (974aeb9)
version 1.1.1
- 2026-07-21: improve error handling for audio route (a130516)
version 1.0.4
- 2026-01-27: update and refactor (ff772ef)
